Conceptual Diagrams for Marine Electrical Systems

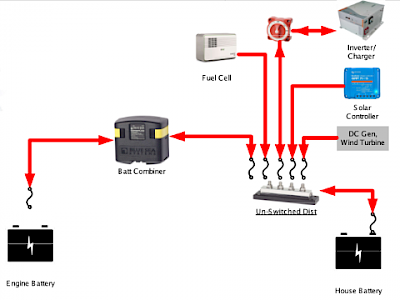

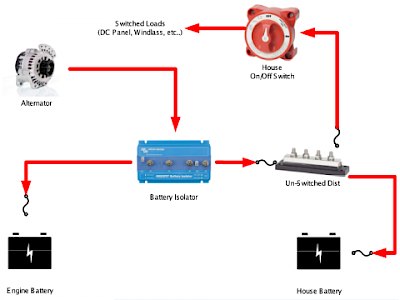

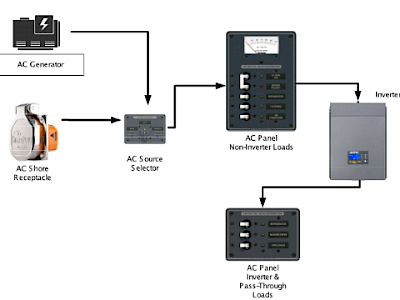

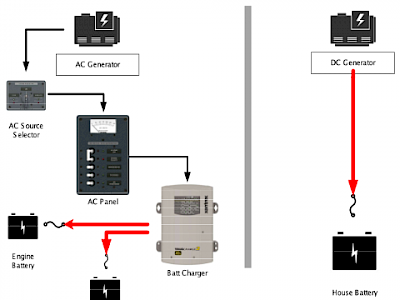

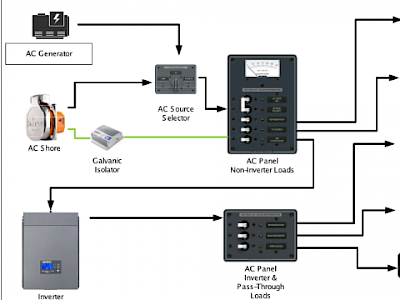

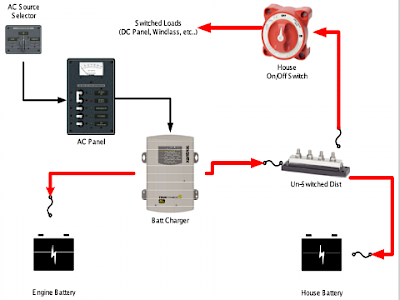

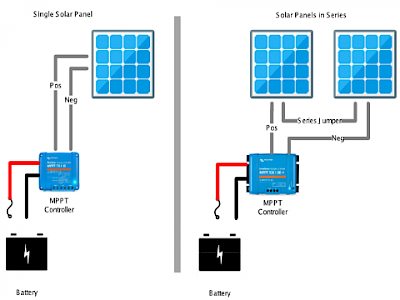

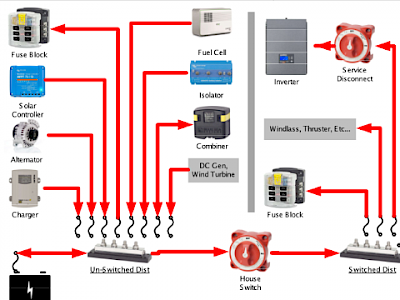

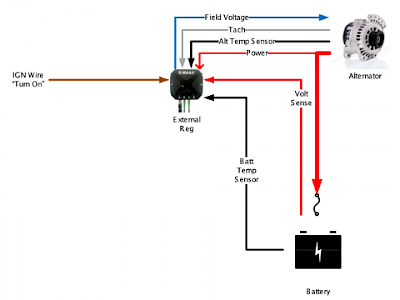

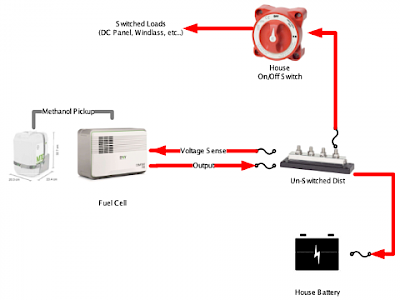

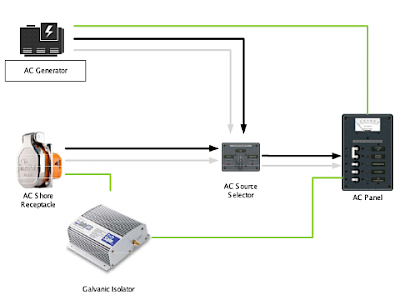

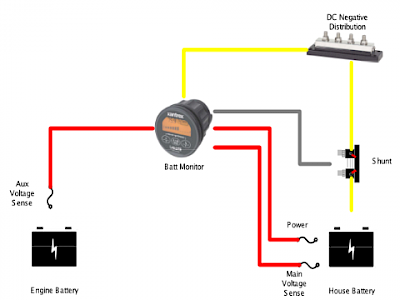

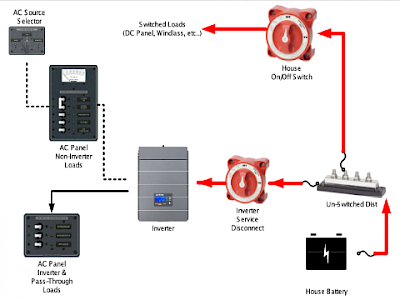

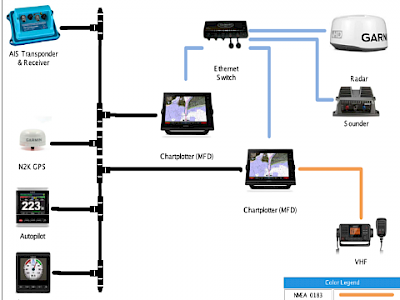

PYS provides these conceptual diagrams to illustrate typical marine electrical installations. For clarity, the diagrams primarily highlight each circuit's DC positive or AC hot side.
Please note that these diagrams are intended for reference only and should not be used as standalone installation guides. To ensure a safe and effective setup, start with a solid plan by engaging PYS remotely for technical advice and tailored marine electrical designs specific to your boat.
